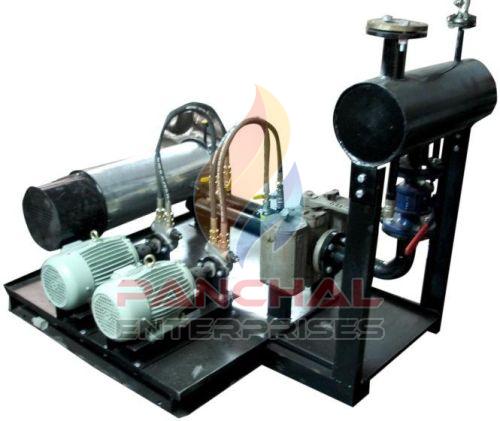

Ring Main Systems Heating Pumping Unit

1 Piece (MOQ)

Business Type Manufacturer, Supplier, Trader
Type Ring Main Unit
Application Industrial
Weight 80-100 Kgs
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Rated Current
415V, 50Hz
No. of Poles
To pump the fuel oil from the Tank in the required pressure to the Heaters and further to the Burner
Mild steel
Powder Coating
Ambient air temperature for operation
30-35 deg C

Ring Main System is the assembly of hydraulic equipment which are used to maintain the inlet pressure of the fuel at the inlet of the burner from the oil tank, to get proper atomization of the fuel & to achieve complete combustion.


It is used to maintain a positive pressure head of 2 to 3 bars at the temperature of 50º C approx. to make it pumpable to the pumping, heating, filtering unit.


Ring main System mainly consists of

  • Header tank / Day tank
  • Duplex oil Filter
  • High Pressure Oil Pump with Motor (1 no working & 1 No Standby)
  • Inlet Pressure Regulating Valve (IPRV)
  • Outlet Header with Pressure Guage
  • Isolation Ball Valve
