Pressure Regulating Valves

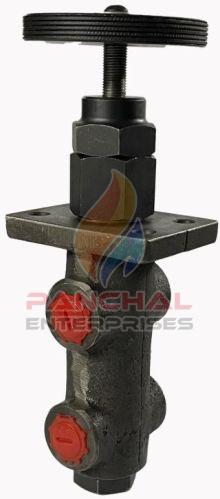

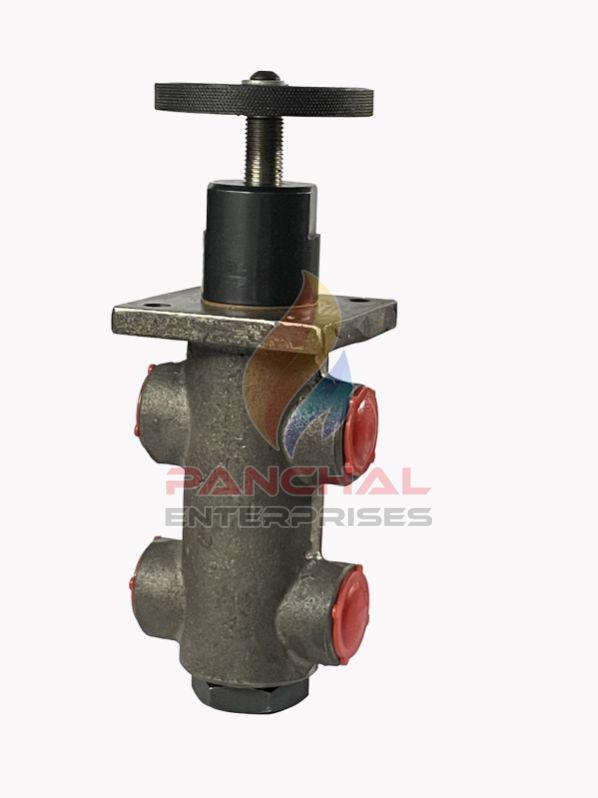

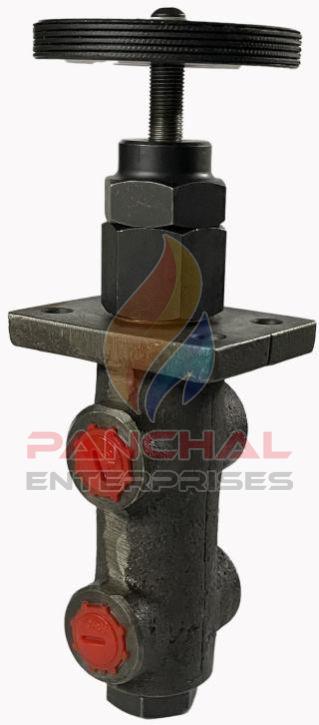

An inlet Pressure regulating valve controls the inlet pressure of the fuel from the Pump assembly to the inlet if the Burner.

• IPRV size ¾” – Max flow 2000 LPH
• IPRV size 3/8” – Max flow 800 LPH

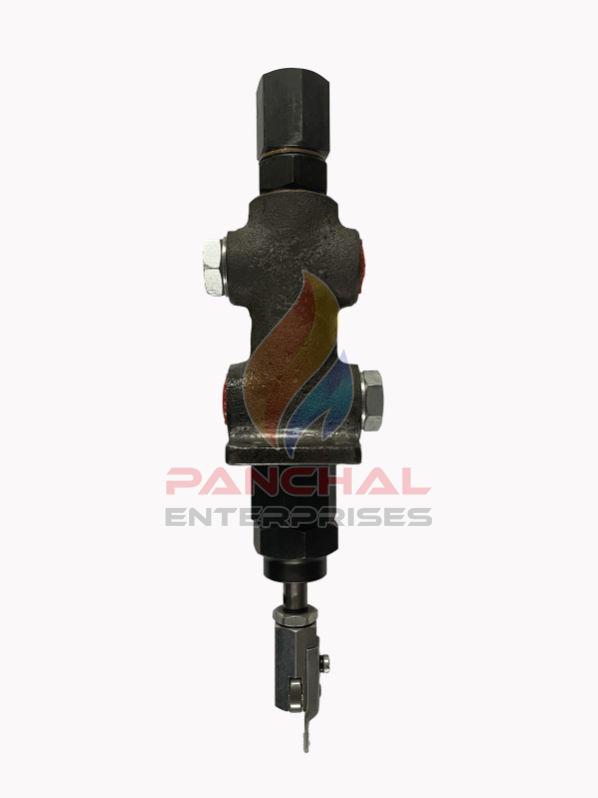

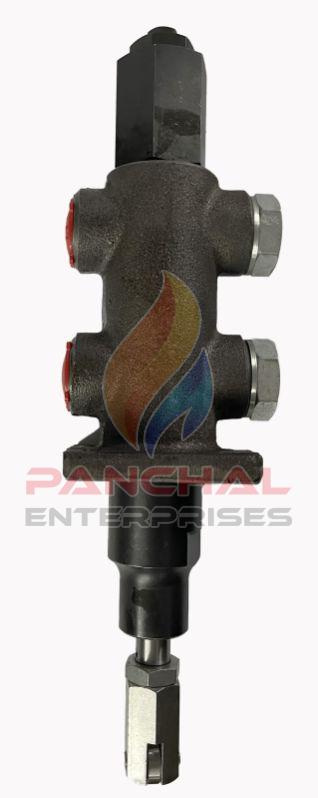

The Back Pressure Regulating valve controls the oil  quantity on the bypass of the burner, which is required to achieve the revelant nozzle automisation and optimum Burner performance.

• BPRV size 3/8” – 300-600 LPH
• BPRV size ¾” – 1000-1200 LPH
